GPRS wifi ami water meter

Quantity:
  • DN50-DN300
  • SH-MECH

GPRS WIRELESS AMR WATER METER

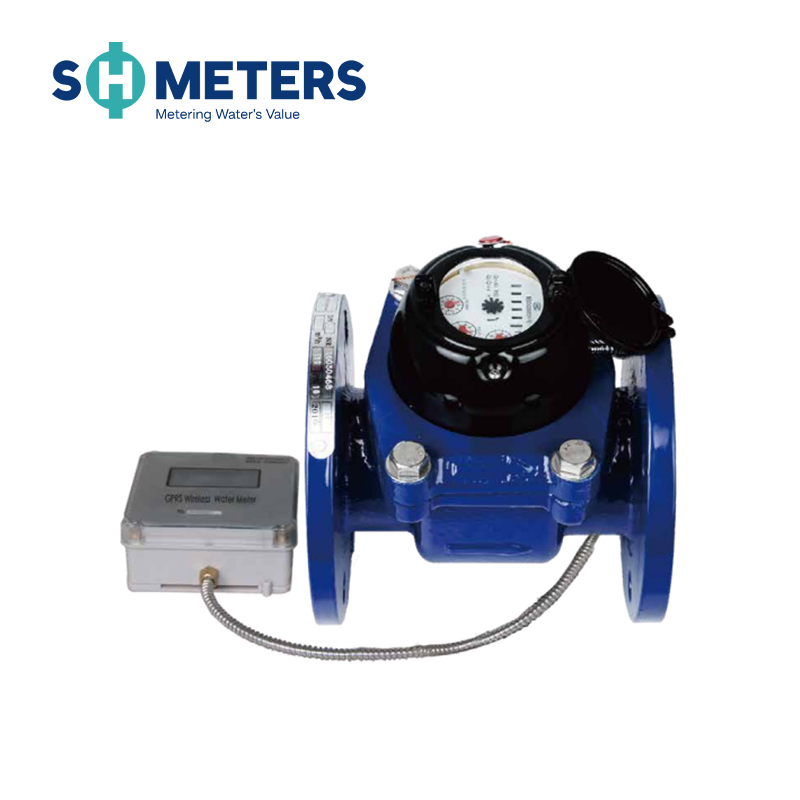

gprs water meter-mult jet

Outline dimensional drawing

Outline dimensional drawing

Dimension

Nominal

Diameter

Length L

Height H

Connecting flange GB/T17241.6-2008

mm

ΦD1

ΦD2

Bolt size n-M

50

200

383

165

125

4-M16

65

200

433

185

145

4-M16

80

225

450

200

160

8-M16

100

250

480

220

180

8-M16

125

250

515

250

210

8-M16

150

300

543

285

240

8-M20

200

350

610

340

295

12-M20(1.6Mpa)

250

450

693

405

405

12-M24(1.6Mpa)

300

500

766

460

410

12-M24(1.6Mpa)


Technical
specifications

Nominal diameter (mm)

 Measuring range

Max flow

(Q4)

Nominal flow

(Q3)

Transitional

flow(Q2)

Min flow

(Q1)



m³⁄ h

m³⁄ h

m³⁄ h

m³⁄ h

50

R80

31.25

25

0.80

0.50

65

R80

50.00

40

1.28

0.80

80

R50

78.75

63

2.016

1.26

100

R50

125.00

100

3.20

2.00

125

R50

200.00

160

5.12

3.20

150

R50

312.50

250

8.00

5.00

200

R50

500.00

400

12.80

8.00

250

R50

787.50

630

20.16

12.60

300

R50

1250.00

1000

32.00

20.00
