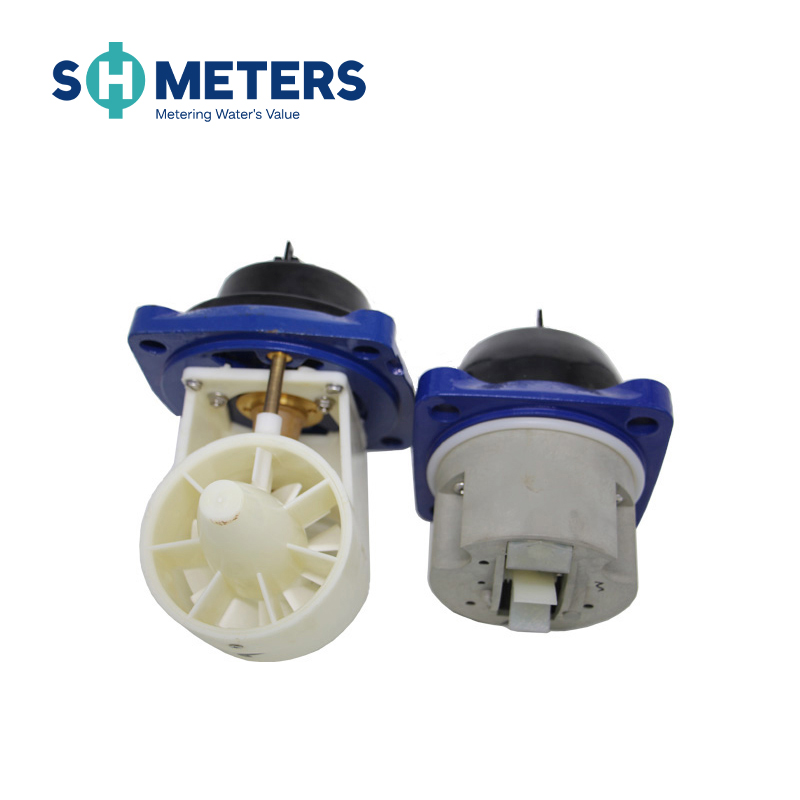

woltman water meter mechanism
S.H.Meters
The Woltman water meter is a type of mechanical flow meter used to measure the volume of water passing through a pipeline. It consists of a turbine wheel which is rotated by the flow of water, and a series of gears that convert the rotational motion of the wheel into a display of the total volume of water that has passed through the meter.
The basic mechanism of the Woltman water meter consists of an inlet and outlet pipe, with a turbine wheel mounted on a central axis in between them. As water flows through the meter, it drives the turbine wheel, which in turn rotates a shaft and a series of gears. These gears drive a series of dials or a digital readout that displays the total volume of water that has passed through the meter.
The Woltman meter is widely used in commercial and industrial applications, as well as in domestic water supply systems where high flow rates are required. Its robust design and accuracy make it well-suited for measuring large volumes of water over extended periods of time.
Description
Meter cover: 15-600mm
Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi jet & single jet & volumetric)
Meter flange: 50mm-600mm
lead free meter fitting: 15mm-50mm
Technics: Forging, Casting. ductile
Material: Brass, Plastic, cast iron, ductile iron
BSPT or NPT thread.
Meter mechanism: 15mm-600mm
Meter box
We produce all parts for multi-jet water meter, single-jet water meter, volumetric water meter, woltman water meter, prepaid water meter etc.
Specifications
Plastic water meter box. good quality and cheap price.
Special locking mechanism , requiring a tailor-made key to open the lid
Unique coupings, conventient replacement for the meters inside the meter/ballcock assembly is lcoked where it passes through the meter box to prevent it from rotating during installation.
High quality ball cock shut off valves without rising headparts which can cause leaks.
Standards Compliance
ISO4064 Class B for horizontal installation
Application
The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use in heave traffic situations working conditions
Water temperature: <40C
Hot Tags: water meter kit components, manufacturers, wholesale, pricelist, quotation
