DN50~DN300
S.H.Meters

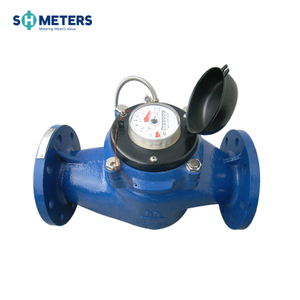

woltman water meter industrial cast iron
Application
Available in the field of sewage metering, drip irrigation system, etc.
Basic parameters
·Accuracy: R=25/20/50/class a.
·Size: DN50-DN300.
·Reed switch option.
·Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose.
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Features:
· Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline.
· Dry-dial, Magnetic drive sensitive action, small pressure loss.
· Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service.
· Selected high quality materials for steady & reliable charac teristic.
· Technical data conform to international standard ISO 4064.
·With high accuracy
·Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter
Pulse Position
| Size | Pulse Position |
| DN50-200 | 100/1000L/Pulse |
| DN250-300 | 1000L/Pulse |
Flow Technique Specification
Nominal Flow | Maximum Flow Q4 | Permanent Flow Q3 | Q3 /Q1
| Q2 /Q1
| Transitional Flow Q2 | Minimum Flow Q1 | Minimum Reading | Maximum Reading | ||
Full Glass Seal | Common Seal | Full Glass Seal | Common Seal | |||||||
| DN | m³/h | m³/h | m³ | |||||||
| 50 | 31.25 | 25 | 20 | 4 | 5 | 1.25 | 0.002 | 0.0002 | 999,999 | 999,999 |
| 65 | 50 | 40 | 20 | 4 | 8 | 2 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 80 | 78.75 | 63 | 20 | 4 | 12.6 | 3.15 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 100 | 125 | 100 | 20 | 4 | 20 | 5 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 125 | 200 | 160 | 20 | 4 | 32 | 8 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 150 | 312.5 | 250 | 20 | 4 | 50 | 12.5 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 200 | 500 | 400 | 20 | 4 | 80 | 20 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 250 | 787.5 | 630 | 20 | 4 | 126 | 31.5 | 0.02 | 0.02 | 9,999,999 | 99,999,999 |
| 300 | 1250 | 1000 | 20 | 4 | 200 | 50 | 0.02 | 0.02 | 9,999,999 | 99,999,999 |
Installation, use and maintenance methods
1. Select the diameter of the water meter. The water meter of the appropriate diameter should be selected according to the diameter of the pipeline and the flow rate of the installation site.
2. The installation location should avoid exposure to sunlight, flooding, freezing and pollution, so as to facilitate disassembly and meter reading, and measures should be taken to prevent rain and frost in the rainy season and winter.
3. Before installation, the hemp wire, sand and other debris in the pipeline should be removed to avoid water meter failure.
4. During installation, valves and filters should be installed in front of the water meter to cut off the water source to disassemble the water meter and prevent debris from damaging the water meter.
Why choose us ?
1.Professional R & D team support the customization request including the meters parts, various signal output, the data management system and charge system. The aim is to achieve the water metering system localization .
2.We have a strict quality management system, and experienced technical engineers are in charge of production and calibration, so as to ensure the quality of each water meter before delivery. For regular order provide each water meter test result and inspection report.
3.About the delivery ability side , we have stable stock. For sample and trial order, we have the special production line to make sure the fast delivery. and large orders also can guarantee the delivery time.
4.Our fund is guaranteed, the payment method is flexible.
5. As to the after-sales service system, we are building the complete after-sell services station in overseas markets and looking for more local partners can start the cooperation with us.
woltman water meter industrial cast iron
Application
Available in the field of sewage metering, drip irrigation system, etc.
Basic parameters
·Accuracy: R=25/20/50/class a.
·Size: DN50-DN300.
·Reed switch option.
·Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose.
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Features:
· Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline.
· Dry-dial, Magnetic drive sensitive action, small pressure loss.
· Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service.
· Selected high quality materials for steady & reliable charac teristic.
· Technical data conform to international standard ISO 4064.
·With high accuracy
·Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter
Pulse Position
| Size | Pulse Position |
| DN50-200 | 100/1000L/Pulse |
| DN250-300 | 1000L/Pulse |
Flow Technique Specification
Nominal Flow | Maximum Flow Q4 | Permanent Flow Q3 | Q3 /Q1
| Q2 /Q1
| Transitional Flow Q2 | Minimum Flow Q1 | Minimum Reading | Maximum Reading | ||
Full Glass Seal | Common Seal | Full Glass Seal | Common Seal | |||||||
| DN | m³/h | m³/h | m³ | |||||||
| 50 | 31.25 | 25 | 20 | 4 | 5 | 1.25 | 0.002 | 0.0002 | 999,999 | 999,999 |
| 65 | 50 | 40 | 20 | 4 | 8 | 2 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 80 | 78.75 | 63 | 20 | 4 | 12.6 | 3.15 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 100 | 125 | 100 | 20 | 4 | 20 | 5 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 125 | 200 | 160 | 20 | 4 | 32 | 8 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 150 | 312.5 | 250 | 20 | 4 | 50 | 12.5 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 200 | 500 | 400 | 20 | 4 | 80 | 20 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 250 | 787.5 | 630 | 20 | 4 | 126 | 31.5 | 0.02 | 0.02 | 9,999,999 | 99,999,999 |
| 300 | 1250 | 1000 | 20 | 4 | 200 | 50 | 0.02 | 0.02 | 9,999,999 | 99,999,999 |
Installation, use and maintenance methods
1. Select the diameter of the water meter. The water meter of the appropriate diameter should be selected according to the diameter of the pipeline and the flow rate of the installation site.
2. The installation location should avoid exposure to sunlight, flooding, freezing and pollution, so as to facilitate disassembly and meter reading, and measures should be taken to prevent rain and frost in the rainy season and winter.
3. Before installation, the hemp wire, sand and other debris in the pipeline should be removed to avoid water meter failure.
4. During installation, valves and filters should be installed in front of the water meter to cut off the water source to disassemble the water meter and prevent debris from damaging the water meter.
Why choose us ?
1.Professional R & D team support the customization request including the meters parts, various signal output, the data management system and charge system. The aim is to achieve the water metering system localization .
2.We have a strict quality management system, and experienced technical engineers are in charge of production and calibration, so as to ensure the quality of each water meter before delivery. For regular order provide each water meter test result and inspection report.
3.About the delivery ability side , we have stable stock. For sample and trial order, we have the special production line to make sure the fast delivery. and large orders also can guarantee the delivery time.
4.Our fund is guaranteed, the payment method is flexible.
5. As to the after-sales service system, we are building the complete after-sell services station in overseas markets and looking for more local partners can start the cooperation with us.
