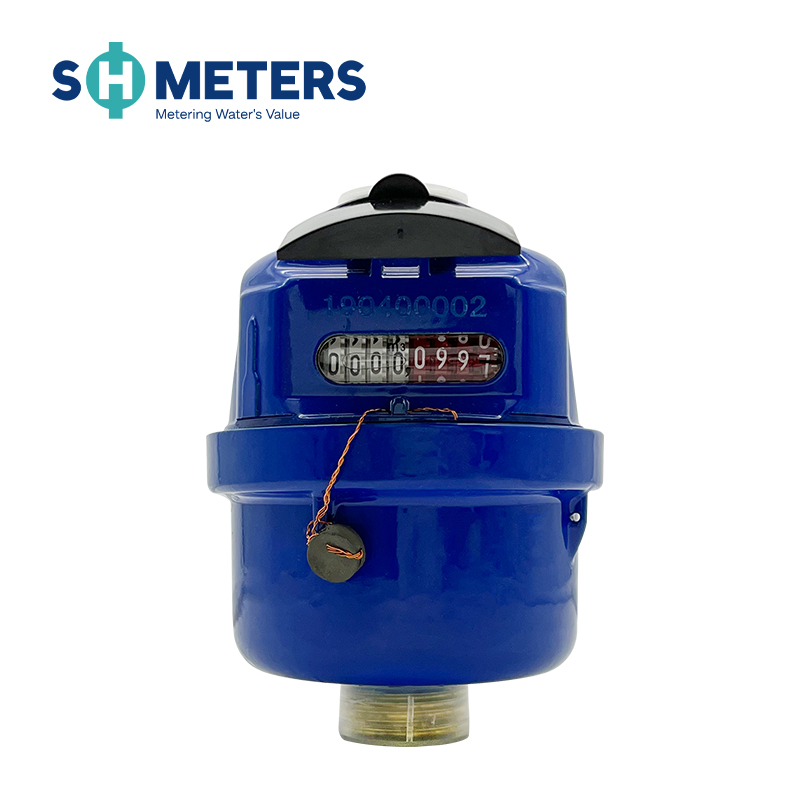

volumetric water meter
S.H.Meters
A DN40 volumetric water meter is a type of flow meter that is designed to measure the volume of water passing through a pipe with a diameter of 40mm (DN40) over time. These types of meters are commonly used in residential, commercial and industrial applications to monitor water consumption and flow rates.
Volumetric water meters work by measuring the displacement of water as it flows through the meter's chamber. The meter contains a measuring chamber with a known volume, which fills and empties as water passes through it. The number of times this process occurs over a given period of time is then used to calculate the total volume of water that has passed through the meter.
DN40 refers to the nominal diameter of the pipe, which is the internal diameter of the pipe measured in millimeters. In this case, the pipe has a nominal diameter of 40mm.
Features | Application |
1. Low start-up flow rate. 2. Volumetric rotary piston principle of measurement. 3. LXHY-15~20 is no location limitation for installation.Accuracy is not to be affected wherever installed at a horizontal,vertical or inclined pipeline. 4. Register is sealed with a special liquid to keep a clear reading in long terrm service. 5. Mechanism use of high-quality rmaterial to ensure a stable characteristic. 6. Accurate measurement with conformity to lSo 4064 class c. 7. on request,the series can be equipped with a kind of remote transmission device. | Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water. |
Warranty | |
- Water temperature:0.1℃~50℃C for cold water meter. .0.1℃~90℃ for hot water meter. .Water pressure : s1.6Mpa (16 bar). | |
Operating Condition | |
-The Max.Admissible water pressure 1.6MPa. -Resisting water temperature: 50℃. |
Dial Picture | Measure Unit |
Measure Unit: CBM 8 WHEELS Four red, four white wheel. The minimum reading: 1L | |
Measure Unit: CBM 8 WHEELS Three red,five white wheel. The minimum reading: 1OL | |
Measure Unit:UK Gallon 8 WHEELS One red,seven white wheel The minimum reading: 1 UK/Gallon | |
Measure Unit:UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon | |
Measure Unit:US Gallon 8 WHEELS One red,three black,four white wheel The minimum reading: 1 US Gallon |
Body material: Brass body /Plastic body.
Size: Plastic body: DN15-20;Brass body: DN15-40.
Different register can be choose
