SINGLE SERIES Manual Water Meter Test Bench

Quantity:
  • 4000mm*1750mm*2150mm
  • SH-MECH

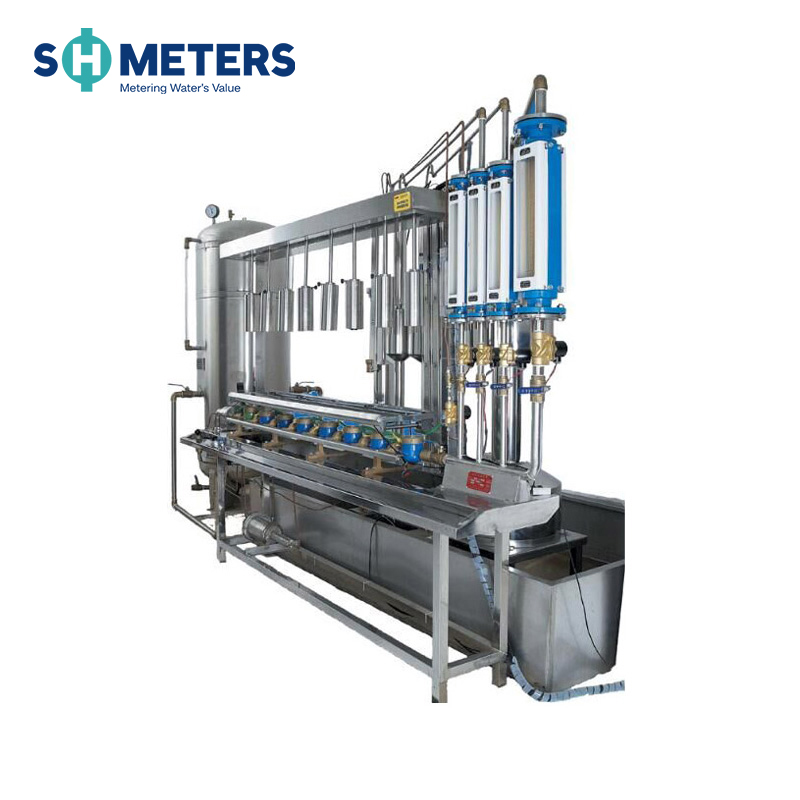

SINGLE SERIES Manual Water Meter Test Bench

SINGLE SERIES water meter test bench

Schematic Diagram


Schematic Diagram


Size And Weight

· Size: 4000mm*1750mm*2150mm.

· Weight: 900KGS.


Component Part

  • LS-3B 15-25 Single Series with Compression Tester With 1 set 15-25 Straight Tube.

  • Measuring device is 4 double gourd structures, SS304 material

  • Work table and water bucket material is 304 stainless steel plate, the thickness of 1.5mm. Integral pressing forming.

  • 0.7CBM Source Stability Device. SS304 Material, thickness of 3mm.

  • Stainless Steel Water Tank 2440x1220x400mm SS304 Material, thickness of 1.5mm.

  • Filter.

  • Piping Pump (support variety of pumps,could choose in your country).

  • Stainless Steel Pipe Fittings include Shockproof Soft Connection,flange and valve (pump to tank to source stability device to water meter tester).

  • Motor: 2.2KW. 380V, 3 phase, 50Hz


Performance

Test quantity: DN15 7pcs; DN20 6pcs; DN25 5pcs Accuracy: ≤0.2%


After-sale Service

· Warranty Period: 1 year.

· Install Assistant.

· Extra set of wearing parts.
