LXXG-50-300MM
S.H.Meters
The Woltman water meter is a meter used to measure the flow of water. It uses a technology called the "Woltman measuring principle" to measure the flow of water by passing water through a rotating turbine, which drives the metering device.
Application
Measuring the volume of cold (hot) water passing through the pipeline.
water meter is used for home or apartment
Features
·Removable element structure, easy installation and maintenance.
·Dry-dial, Magnetic drive.
·Large flow capacity, small pressure loss.
·Resist water hummer and pollution.

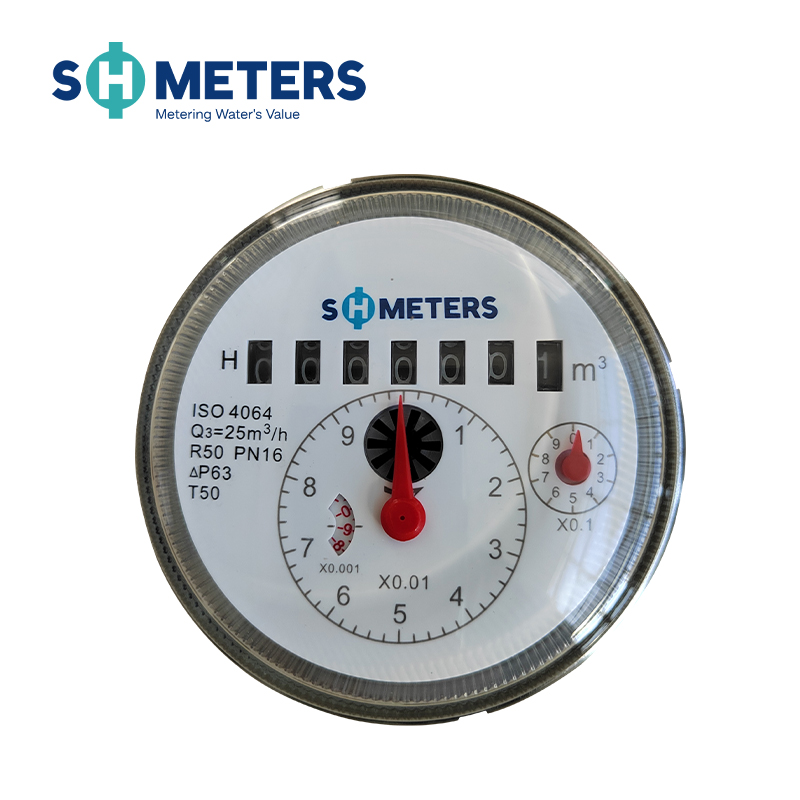

·Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service.
·Selected high quality materials for steady and reliable characteristic.
·Technical data conform to international standard ISO 4064/ISO9100.
·With high accuracy
·Product accessories include connectors, filters, connection accessories, pipe accessories,Flange, filter
Optional Features
·Plastic register, copper register and full glass register.
·Accuracy: R=25/20/50/class a.
·Size: DN50-DN300.
·Cold / Hot water.
·Water meter temperature: 40℃-90℃
·Reed switch option.
·Flange standard can be choose.
·360 degree rotate can be choose.
·Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose.
·Working pressure: PN16/25.
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Working Condition
·Water temperature: 0.1℃~50℃ (0.1℃~90℃ for hot water meter).
·Water pressure: ≤1.0Mpa (1.6MPa on request).
Maximum Permissible Errors
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter).
Dimensions
| Type | size | Length | Height | Connecting Flange | ||
| mm | D1 Outside Diameter | D2 Bolt Circle Diameter | Connecting Bolts(n-m) | |||
LXXG-50 | 50 | 200 | 253 | 165 | 125 | 4-M16 |
LXXG-65 | 65 | 200 | 268 | 185 | 145 | 4-M16 |
LXXG-80 | 80 | 225 | 284 | 200 | 160 | 8-M16 |
LXXG-100 | 100 | 250 | 295 | 220 | 180 | 8-M16 |
LXXG-125 | 125 | 250 | 310 | 250 | 210 | 8-M16 |
LXXG-150 | 150 | 300 | 339 | 285 | 240 | 8-M16 |
| LXXG-200 | 200 | 350 | 382 | 340 | 295 | 8-M20(1.0MPa) |
12-M20(1.6MPa) | ||||||
LXXG-250
| 250 | 450 | 438 | 395 | 350 | 12-M20(1.0MPa) |
| 405 | 355 | 12-M24(1.6MPa) | ||||
LXXG-30 | 300 | 500 | 488 | 445 | 400 | 12-M20(1.0MPa |
| 460 | 410 | 12-M24(1.6MPa) | ||||
NOTE: The flange dimension conforms to ISO7005-1:1988 standard. Flange standard can be customized. Order for products of special requirements is also accepted.
Pulse Position
| Size | Pulse Position |
| DN50-200 | 100/1000L/Pulse |
| DN250-300 | 1000L/Pulse |
Flow Technique Specification
Nominal Flow | Maximum Flow Q4 | Permanent Flow Q3 | Q3 /Q1
| Q2 /Q1
| Transitional Flow Q2 | Minimum Flow Q1 | Minimum Reading | Maximum Reading | ||
Full Glass Seal | Common Seal | Full Glass Seal | Common Seal | |||||||
| DN | m³/h | m³/h | m³ | |||||||
| 50 | 31.25 | 25 | 20 | 4 | 5 | 1.25 | 0.002 | 0.0002 | 999,999 | 999,999 |
| 65 | 50 | 40 | 20 | 4 | 8 | 2 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 80 | 78.75 | 63 | 20 | 4 | 12.6 | 3.15 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 100 | 125 | 100 | 20 | 4 | 20 | 5 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 125 | 200 | 160 | 20 | 4 | 32 | 8 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 150 | 312.5 | 250 | 20 | 4 | 50 | 12.5 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 200 | 500 | 400 | 20 | 4 | 80 | 20 | 0.002 | 0.002 | 999,999 | 9,999,999 |
| 250 | 787.5 | 630 | 20 | 4 | 126 | 31.5 | 0.02 | 0.02 | 9,999,999 | 99,999,999 |
| 300 | 1250 | 1000 | 20 | 4 | 200 | 50 | 0.02 | 0.02 | 9,999,999 | 99,999,999 |
The woltman water meter is an important type of water meter with a wide range of applications.
